Cylindrical roller bearings single row without an inner ring from China manufacturer

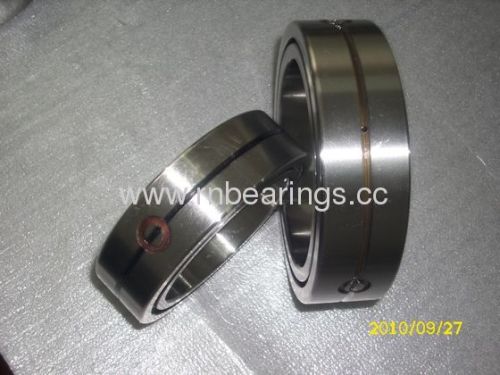

Cylindrical roller bearings single row without an inner ring

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RNU204 ECP

Production Capacity: 10000 Piece/Pieces per Mont...

Delivery Date: 35 days

Number of row: Single row

Material of race: Chrome steel

Precision: P6

Means of Transport: Ocean,Air

Packing: RNB OR NATURAL

Brand Name: RNB OR NATURAL

Type: Roller bearing

Material of roller: Chrome steel

1.NU design cylindrical roller bearings without an inner ring designation prefix RNU.
2.N design bearings without an outer ring designation prefix RN

*Cylindrical roller bearings single row without an inner ring*

Cylindrical roller bearings single row without an inner ring provide a solution for applications were hardened and groundraceways are provided on the shaft or in the housing bore. Because RNU designbearings, for example, do not need an inner ring, the bearing arrangement designcan be downsized or the shaft diameter can be larger to provide a stronger,stiffer arrangement. Additionally, the possible axial displacement of the shaftrelative to the housing is only limited by the width of the raceway on the shaftfor the RNU design or in the housing bore for the RN design.

A selection of RNU design cylindrical roller bearings is listed in product table"Cylindrical roller bearings, single row, without inner ring". In case of RNUdesign bearings the inside diameter F_w of the roller complement, whenthe rollers are in contact with the outer ring raceway, lies within the limitsof tolerance F6. Generally, SKF recommends machining the raceways on the shaftto g6 tolerance and the seats in the housing to K6 tolerance. For additional information on machining and materials of raceways seesection"" or contact the application engineering service.

Cylindrical roller bearings single row without an inner ring
1.NU design cylindrical roller bearings without an inner ring designation prefix RNU.
2.N design bearings without an outer ring designation prefix RN

Cylindrical roller bearings, single row, without an inner ring
Product information
Principal dimensions			Basic load ratings		Fatigue	Speed ratings		Mass	Designation
			dynamic	static	load	Reference	Limiting
					limit	speed	speed
F_w	D	C	C	C₀	P_u
mm			kN		kN	r/min		kg	-
19,3	35	11	12,5	10,2	1,22	22000	26000	0,037	RNU 202 ECP
22,1	40	12	17,2	14,3	1,73	19000	22000	0,053	RNU 203 ECP
22,1	40	16	23,8	21,6	2,65	19000	22000	0,072	RNU 2203 ECP
22,9	40	12	10,8	5,2	1,02	20000	22000	0,044	RNU 203 TN9
26,5	47	14	25,1	22	2,75	16000	19000	0,083	RNU 204 ECP
27	47	14	14,7	7,35	1500	18000	19000	0,081	RNU 204
27,5	52	21	47,5	38	4,8	15000	18000	0,16	RNU 2304 ECP
28,5	52	15	20,5	10,4	2080	15000	18000	0,11	RNU 304
31,5	52	15	28,6	27	3,35	14000	16000	0,10	RNU 205 ECP
31,5	52	18	34,1	34	4,25	14000	16000	0,12	RNU 2205 ECP
32	52	15	16,8	8,8	1,86	15000	17000	0,093	RNU 205
35	62	17	28,6	15	3,05	12000	15000	0,17	RNU 305
36,5	55	13	17,9	17,3	1,86	14000	15000	0,085	RNU 1006
37,5	62	16	44	36,5	4,5	13000	14000	0,18	RNU 206 ECP
37,5	62	20	55	49	6,1	13000	14000	0,2	RNU 2206 ECP
42	62	14	35,8	38	2,55	12000	13000	0,11	RNU 1007 ECP
42	72	19	36,9	20	4,25	11000	12000	0,25	RNU 306
44	72	17	56	48	6,1	11000	12000	0,22	RNU 207 ECP
44	72	23	69,5	63	8,15	11000	12000	0,3	RNU 2207 ECP
46,2	80	21	75	63	8,15	9500	11000	0,42	RNU 307 ECP
46,2	80	31	58,3	35,5	7,5	8500	11000	0,52	RNU 2307
46,2	80	31	106	98	12,7	9500	11000	0,54	RNU 2307 ECP
49,5	80	18	62	53	6,7	9500	11000	0,32	RNU 208 ECP
49,5	80	23	81,5	75	9,65	9500	11000	0,41	RNU 2208 ECP
52	90	23	93	78	10,2	8000	9500	0,57	RNU 308 ECP
