Cylindrical roller bearings double row full complement from China manufacturer

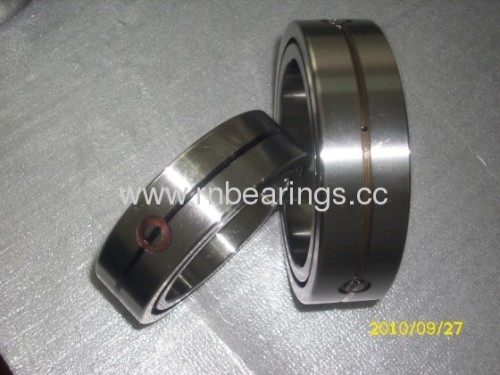

Cylindrical roller bearings double row full complement

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: NNCF 4918 CV

Production Capacity: 50000 Piece/Pieces per Mont...

Delivery Date: 30 days

Number of row: Double row

Material of race: Chrome steel

Precision: P6

Means of Transport: Ocean,Air

Packing: RNB OR NATURAL

Brand Name: RNB OR NATURAL

Type: Roller bearing

Material of roller: Chrome steel

1. Incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads.
2.NNCF design bearings have three integral flanges

Cylindrical roller bearings double row full complement

Double row full complement cylindrical roller bearing sincorporate a maximum number of rollers and are therefore suitable for very heavy radial loads. However, they cannot operate at the same high speeds as caged cylindrical roller bearings.Double row full complement cylindrical roller bearings are produced as standard in four designs, three open designs and one sealed. All the bearings are non-separable and have an annular groove and three lubrication holes in the outer ring to facilitate efficient lubrication.

NNCF design (Cylindrical roller bearings double row full complement)

NNCF design bearings have three integral flanges on the inner ring and one integral flange on the outer ring enabling the bearing to provide axial location for a shaft in one direction. A retaining ringis inserted in the outer ring at the side opposite the integral flange andserves to hold the bearing together.

Cylindrical roller bearings, double row full complement
Product information
Principal dimensions			Basic load ratings		Fatigue	Speed ratings		Mass	Designation
			dynamic	static	load	Reference	Limiting
					limit	speed	speed
d	D	B	C	C₀	P_u
mm			kN		kN	r/min		kg	-
20	42	30	52,3	57	6,2	8500	10000	0,20	NNCF 5004 CV
20	42	30	45,7	55	6,2	-	3400	0,2	NNF 5004 ADB-2LSV
25	47	30	59,4	71	7,65	7000	9000	0,23	NNCF 5005 CV
25	47	30	50,1	65,5	6,8	-	3000	0,24	NNF 5005 ADB-2LSV
30	55	34	73,7	88	10	6000	7500	0,35	NNCF 5006 CV
30	55	34	57,2	75	7,8	-	2600	0,37	NNF 5006 ADB-2LSV
35	62	36	89,7	112	12,9	5300	6700	0,46	NNCF 5007 CV
35	62	36	70,4	91,5	10,2	-	2200	0,48	NNF 5007 ADB-2LSV
40	68	38	106	140	16,3	4800	6000	0,56	NNCF 5008 CV
40	68	38	85,8	116	13,4	-	2000	0,56	NNF 5008 ADB-2LSV
45	75	40	112	156	18,3	4300	5300	0,71	NNCF 5009 CV
45	75	40	102	146	17	-	1800	0,7	NNF 5009 ADB-2LSV
50	80	40	142	196	23,6	4000	5000	0,76	NNCF 5010 CV
50	80	40	108	160	18,6	-	1700	0,76	NNF 5010 ADB-2LSV
55	90	46	190	280	34,5	3400	4300	1,16	NNCF 5011 CV
55	90	46	128	193	22,8	-	1500	1,18	NNF 5011 ADB-2LSV
60	85	25	78,1	137	14,3	3600	4500	0,49	NNC 4912 CV
60	85	25	78,1	137	14,3	3600	4500	0,48	NNCF 4912 CV
60	85	25	78,1	137	14,3	3600	4500	0,47	NNCL 4912 CV
60	95	46	198	300	36,5	3400	4000	1,24	NNCF 5012 CV
60	95	46	134	208	25	-	1400	1,26	NNF 5012 ADB-2LSV
65	100	46	209	325	40	3000	3800	1,32	NNCF 5013 CV
65	100	46	138	224	26,5	-	1300	1,33	NNF 5013 ADB-2LSV
70	100	30	114	193	22,4	3000	3800	0,78	NNC 4914 CV
70	100	30	114	193	22,4	3000	3800	0,77	NNCF 4914 CV
